RMCF0603FT820K 820kΩ Thick Film Chip Resistor
Product Description
The RMCF0603FT820K is a general-purpose, thick film chip resistor in the compact 0603 (1608 metric) case size. It features a precise resistance value of 820 kΩ with a tight tolerance of ±1% and a low temperature coefficient of resistance (TCR) of ±100 ppm/°C. With a power rating of 1/10 watt, this resistor is designed for reliable performance in a wide range of electronic circuits.
This component is constructed with a robust ceramic substrate and halogen-free materials, ensuring stability and durability. It is fully compliant with RoHS directives, making it an environmentally suitable choice for modern electronics manufacturing.
Features
- RMCF - standard power ratings
- RMCP - high power ratings
- Nickel barrier terminations standard
- Power derating from 100% at 70ºC to zero at +155ºC
- RoHS compliant, REACH compliant, and halogen free
- AEC-Q200 compliant (except 01005 size)
Applications
- Consumer Electronics: Used in smartphones, tablets, TVs, and audio equipment
- Voltage Division: A key component in precision and general-purpose voltage divider networks
- Signal Conditioning: Found in filter circuits, analog-to-digital converter (ADC) input stages
- Industrial Controls: Embedded within control boards, motor drives, and measurement instruments
- Automotive Electronics: Used in non-critical, non-safety automotive modules
- Telecommunications: Found in networking hardware, routers, and communication modules
Technical Specifications
| Category |
Resistors Chip Resistor - Surface Mount |
| Manufacturer |
Stackpole Electronics Inc |
| Series |
RMCF |
| Packaging |
Tape andamp; Reel (TR) Cut Tape (CT) Digi-Reel® |
| Resistance |
820 kΩ |
| Tolerance |
±1% |
| Power Rating |
0.1W, 1/10W |
| Temperature Coefficient |
±100ppm/°C |
| Operating Temperature |
-55°C ~ 155°C |
| Package/Case |
0603 (1608 Metric) |
| Dimensions |
0.061" L x 0.031" W (1.55mm x 0.80mm) |

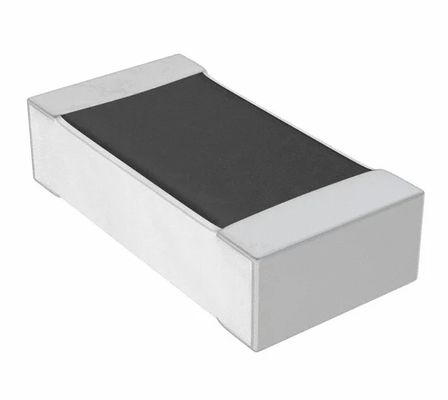

Product Drawing
