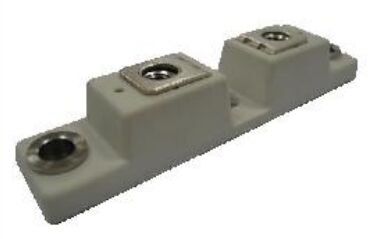

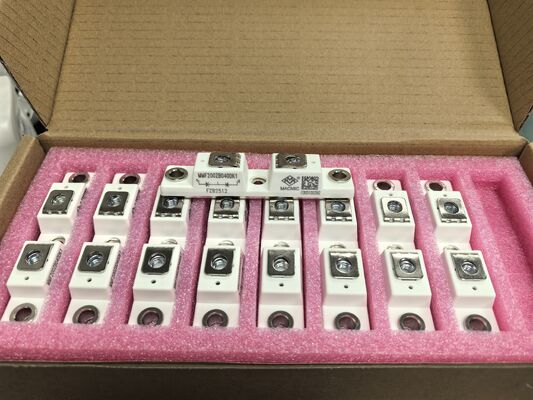

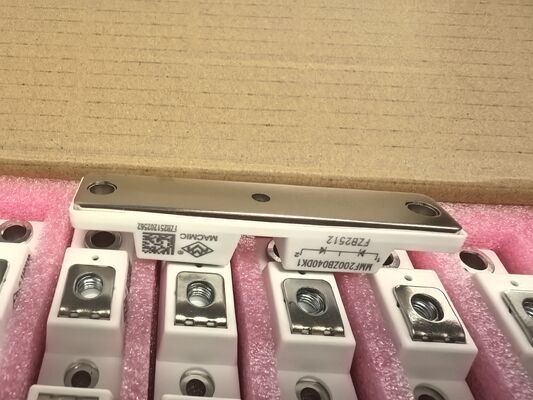

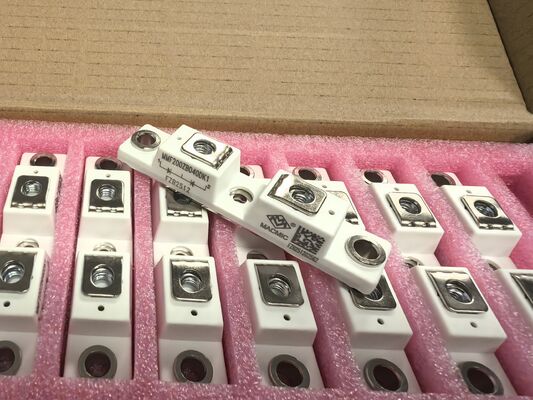

MMF200ZB040DK1 200A SiC MOSFET Power Module 400V Low Rds(on) 1.6mΩ High Efficiency High Speed Switching Automotive Grade Liquid Cooled For xEV Traction Inverters
Features
-
Ultrafast Reverse Recovery Time
-
Soft Reverse Recovery Characteristics
-
Low Reverse Recovery Loss
-
Low Forward Voltage
-
High Surge Current Capability
-
Low Inductance Package
Applications
-
Inversion Welder
-
Uninterruptible Power Supply (UPS)
-
Plating Power Supply
-
Ultrasonic Cleaner and Welder
-
Converter & Chopper
-
Power Factor Correction (PFC) Circuit
Description
The MMF200ZB040DK1 is a state-of-the-art, automotive-grade Silicon Carbide (SiC) MOSFET power module designed specifically for the demanding requirements of next-generation electric vehicle powertrains. It integrates advanced SiC technology to deliver exceptional efficiency and power density, featuring a high current rating of 200A and a 400V voltage class. The module boasts an extremely low typical on-state resistance (Rds(on)) of 1.6mΩ, which minimizes conduction losses. Combined with the inherent high-speed switching capabilities of SiC, it enables significantly higher operating frequencies and reduced system-level losses compared to traditional IGBT solutions. It is qualified to stringent automotive reliability standards, and its optimized liquid-cooled baseplate ensures effective thermal management for high-power, continuous operation.
INFORMATION
| Type |
MMF200ZB040DK1 |
| VRRM (V) |
400 |
| IF(AV) (A) |
2×100 |
| VF (V) |
1.00 |
| trr (ns) |
70 |
| PD (W) |
625 |
| RthJC (K/W) |
0.20 |
| Packages |
FZ |
Drawing
