High-Capacitance 10µF X5S MLCC in 1206 Case 10V Rating Stable Performance Low ESR/ESL Compact Design Lead-Free Construction Ideal for DC-DC Buffering and Advanced Decoupling
Features
-
High Capacitance Density: Delivers 10µF in a relatively compact 1206 package.
-
Stable X5S Dielectric: Offers superior capacitance stability over temperature compared to Y5V, making it suitable for more demanding applications.
-
Low Equivalent Series Resistance (ESR): Provides efficient energy delivery and filtering, reducing power loss and heat generation.
-
Moderate Voltage Rating: The 10V rating is well-suited for common 3.3V and 5V power rails with a good safety margin.
-
Robust & Reliable: Designed for high-reliability applications and compatible with standard reflow soldering processes.
-
Lead-Free & RoHS Compliant: Meets contemporary environmental standards for electronics manufacturing.
Applications
-
DC-DC Converter Output Filtering: Smoothing output ripple and providing charge reserve for load transients in switching power supplies (e.g., for 5V/3.3V rails).
-
Power Rail Decoupling/Buffering: Acting as a local energy reservoir for microprocessors, FPGAs, and other high-performance ICs to supplement smaller high-frequency decoupling capacitors.
-
Consumer & Industrial Electronics: Used in set-top boxes, routers, automotive infotainment, and industrial control modules where stable capacitance is required.
-
Power Management Systems: Input/output filtering for voltage regulators and power management ICs (PMICs).
-
LED Drivers & Motor Control Circuits: For smoothing and energy storage.
Description

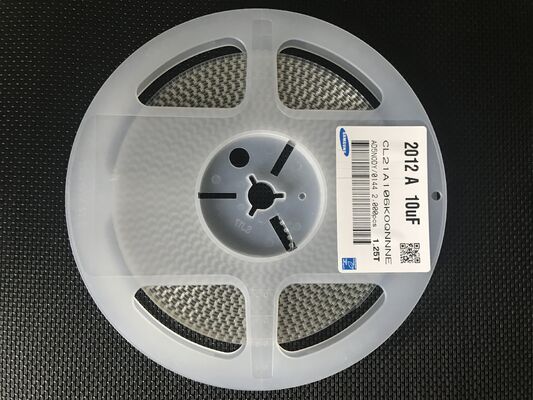

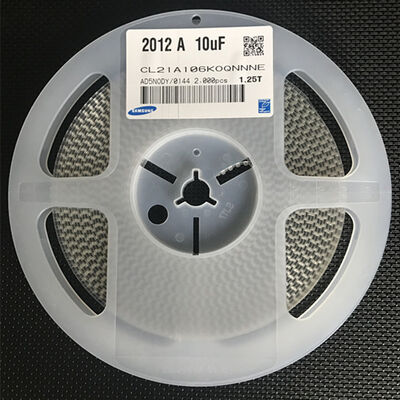

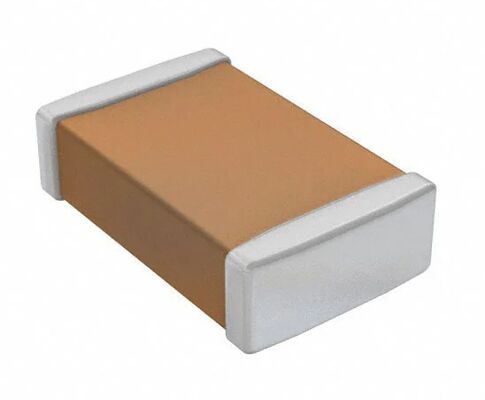

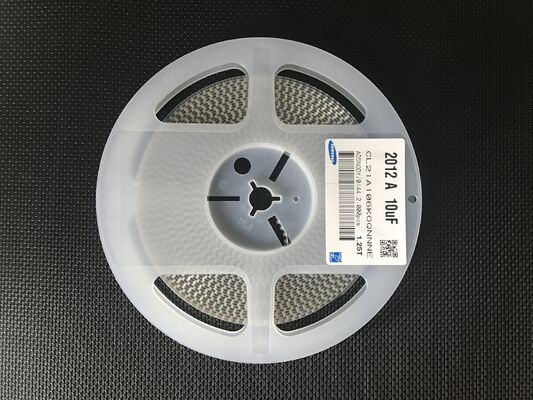

The CL21A106KOQNNNE is a high-capacitance, surface-mount multilayer ceramic capacitor (MLCC) in a 1206 package (3.2mm x 1.6mm). It features a substantial capacitance of 10µF (106) with a 10V rated voltage. Utilizing a stable X5S temperature characteristic dielectric (±15% capacitance change from -55°C to +85°C), this component is engineered to provide a reliable and compact solution for circuits requiring substantial charge storage with better volumetric efficiency and temperature stability than general-purpose dielectrics like Y5V.
Technical Specifications
|
category
|
|
|
|
manufacturer
|
|
|
|
series
|
|
|
|
wrap
|
Tape and Reel (TR)
Shear Belt (CT)
Digi-Reel® won the custom tape and tape
|
|
|
Part status
|
|
|
|
capacitance
|
|
|
|
Tolerance
|
|
|
|
Voltage - Rating
|
|
|
|
temperature coefficient
|
|
|
|
Operating temperature
|
|
|
|
characteristic
|
|
|
|
grade
|
|
|
|
apply
|
|
|
|
Failure rate
|
|
|
|
Mounting type
|
|
|
|
Package/Enclosure
|
|
|
|
Size / Dimensions
|
0.079" L x 0.049" W (2.00mm x 1.25mm)
|
|
|
Height - Mounting (max)
|
|
|
|
Thickness (max)
|
|
|
|
Lead spacing
|
|
|
|
Lead style
|
|
Drawing
