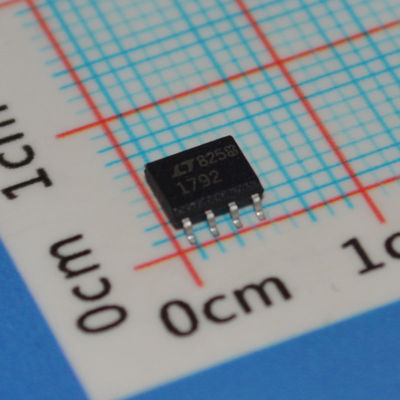

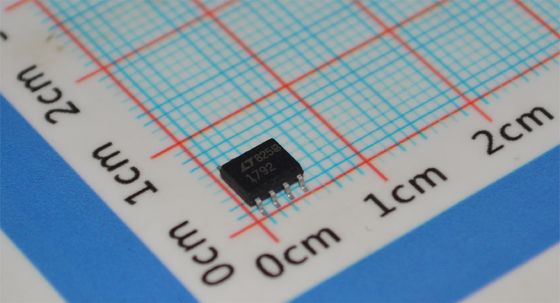

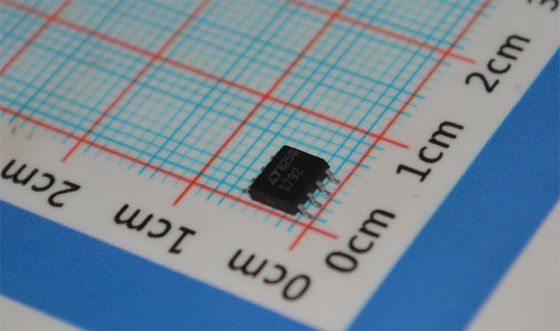

LT1792CS8
FEATURES
100% Tested Low Voltage Noise: 6nV/ÖHz Max
A Grade 100% Temperature Tested
Voltage Gain: 1.2 Million Min
Offset Voltage Over Temp: 800mV Max
Gain-Bandwidth Product: 5.6MHz Typ
Guaranteed Specifications with ±5V Supplies
APPLICATIOS
Photocurrent Amplifiers
Hydrophone Amplifiers n High Sensitivity Piezoelectric Accelerometers
Low Voltage and Current Noise Instrumentation Amplifier Front Ends
Two and Three Op Amp Instrumentation Amplifiers
Active Filters
DESCRIPTION
The LT®1792 achieves a new standard of excellence in noise performance for a JFET op amp. The 4.2nV/ÖHz voltage noise combined with low current noise and picoampere bias currents make the LT1792 an ideal choice for amplifying low level signals from high impedance capacitive transducers.
The LT1792 is unconditionally stable for gains of 1 or more, even with load capacitances up to 1000pF. Other key features are 600mV VOS and a voltage gain of over 4 million. Each individual amplifier is 100% tested for voltage noise, slew rate and gain bandwidth.
The design of the LT1792 has been optimized to achieve true precision performance with an industry standard pinout in the SO-8 package. Specifications are also pro vided for ±5V supplies.
Information
|
Category
|
|
|
|
Mfr
|
|
|
|
Series
|
|
|
|
Packaging
|
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel
|
|
|
Part Status
|
|
|
|
Amplifier Type
|
|
|
|
Number of Circuits
|
|
|
|
Output Type
|
|
|
|
Slew Rate
|
|
|
|
Gain Bandwidth Product
|
|
|
|
Current - Input Bias
|
|
|
|
Voltage - Input Offset
|
|
|
|
Current - Supply
|
|
|
|
Voltage - Supply Span (Min)
|
|
|
|
Voltage - Supply Span (Max)
|
|
|
|
Operating Temperature
|
|
|
|
Mounting Type
|
|
|
|

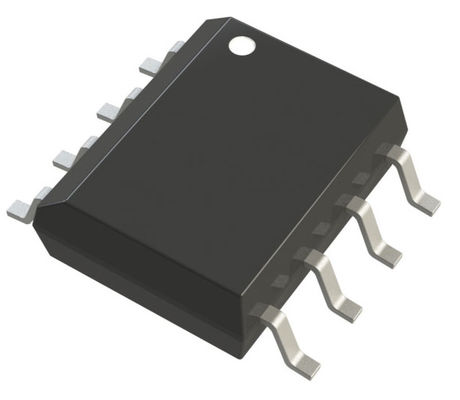

Package / Case
|
8-SOIC (0.154", 3.90mm Width)
|
|
|
Supplier Device Package
|
|
|
|
Base Product Number
|
|
Drawing
